Tesselations

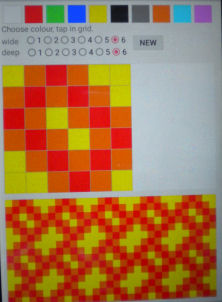

You chose a colour, then click in a grid. The resulting design gets repeated.
app/manifests/AndroidManifest.xml - to force orientation
<![CDATA[
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.edkins.mosaic" >
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:supportsRtl="true"
android:theme="@style/AppTheme" >
<activity android:name=".MainActivity" android:screenOrientation="portrait">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest>
]]>
app/res/drawable - pictures
There are a number of colour files, called "colour0", "colour1", "colour2" etc. They are loaded into an array defined in in app/java/com.(the project name)/MainActivity and used in app/java/com.(the project name)/ImagePalette and app/java/com.(the project name)/ImageTile. The number of them (10) is referenced in app/res/layout/activity_main.xml.
There is also a smaller version of each colour file, called "colour0sm" etc. used in app/java/com.(the project name)/ImageRepeat.
app/res/mipmap/ic_launcher.png/ - icon for launching app
app/res/values/strings.xml - strings
<![CDATA[
<resources>
<string name="app_name">Tessellations</string>
<string name="howTo">Choose colour, tap in grid.</string>
<string name="clearMessage">new</string>
<string name="wideString">wide</string>
<string name="deepString">deep</string>
<string name="num1">1</string>
<string name="num2">2</string>
<string name="num3">3</string>
<string name="num4">4</string>
<string name="num5">5</string>
<string name="num6">6</string>
</resources>
]]>
app/res/layout/activity_main.xml - screen format
<![CDATA[
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:paddingBottom="@dimen/activity_vertical_margin"
tools:context=".MainActivity">
<GridView
android:id="@+id/paletteView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:numColumns="10"
/>
<TextView
android:id="@+id/message"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/howTo"
android:layout_below="@id/paletteView"
/>
<TextView
android:id="@+id/wideMessage"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:paddingTop="4dp"
android:text="@string/wideString"
android:layout_below="@id/message"
/>
<RadioGroup xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/width"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:orientation="horizontal"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:layout_below="@id/message"
android:layout_toRightOf="@id/wideMessage"
android:layout_toEndOf="@id/wideMessage"
>
<RadioButton
android:id="@+id/width1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num1"
android:onClick="clickWide1"
/>
<RadioButton
android:id="@+id/width2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num2"
android:onClick="clickWide2"
/>
<RadioButton
android:id="@+id/width3"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num3"
android:onClick="clickWide3"
/>
<RadioButton
android:id="@+id/width4"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num4"
android:onClick="clickWide4"
/>
<RadioButton
android:id="@+id/width5"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num5"
android:onClick="clickWide5"
/>
<RadioButton
android:id="@+id/width6"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num6"
android:onClick="clickWide6"
/>
</RadioGroup>
<TextView
android:id="@+id/deepMessage"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/deepString"
android:layout_below="@id/wideMessage"
/>
<RadioGroup xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/depth"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:orientation="horizontal"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:layout_below="@id/width"
android:layout_toRightOf="@id/deepMessage"
android:layout_toEndOf="@id/deepMessage"
>
<RadioButton
android:id="@+id/depth1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num1"
android:onClick="clickDeep1"
/>
<RadioButton
android:id="@+id/depth2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num2"
android:onClick="clickDeep2"
/>
<RadioButton
android:id="@+id/depth3"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num3"
android:onClick="clickDeep3"
/>
<RadioButton
android:id="@+id/depth4"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num4"
android:onClick="clickDeep4"
/>
<RadioButton
android:id="@+id/depth5"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num5"
android:onClick="clickDeep5"
/>
<RadioButton
android:id="@+id/depth6"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/num6"
android:onClick="clickDeep6"
/>
</RadioGroup>
<Button
android:id="@+id/clearButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/clearMessage"
android:onClick="doClear"
android:layout_below="@id/message"
android:layout_toRightOf="@id/width"
android:layout_toEndOf="@id/width"
/>
<GridView
android:id="@+id/tileView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:paddingTop="@dimen/activity_vertical_margin"
android:numColumns="10"
android:layout_below="@id/depth"
/>
<GridView
android:id="@+id/repeatView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:paddingTop="@dimen/activity_vertical_margin"
android:layout_below="@id/tileView"
/>
</RelativeLayout>
]]>
app/java/com.(the project name)/MainActivity - main code for app
<![CDATA[
package com.edkins.tessellations;
import ...
public class MainActivity extends AppCompatActivity {
// colour selected - starts as red
int paint = 1;
public static int wide = 4;
public static int deep = 3;
public static int tileRow = 10;
public static int tileMax = 6;
public static int repeatMax = 30;
// tiles - for setting up tessera
public static int [] tile = new int [6 * 6];
// Colours
public static Integer[] palette = {
R.drawable.colour0, R.drawable.colour1, R.drawable.colour2, R.drawable.colour3,
R.drawable.colour4, R.drawable.colour5, R.drawable.colour6, R.drawable.colour7,
R.drawable.colour8, R.drawable.colour9
};
public static Integer[] palettesm = {
R.drawable.colour0sm, R.drawable.colour1sm, R.drawable.colour2sm, R.drawable.colour3sm,
R.drawable.colour4sm, R.drawable.colour5sm, R.drawable.colour6sm, R.drawable.colour7sm,
R.drawable.colour8sm, R.drawable.colour9sm
};
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
GridView palette = (GridView) findViewById(R.id.paletteView);
palette.setAdapter(new ImagePalette(this));
palette.setOnItemClickListener(new AdapterView.OnItemClickListener() {
public void onItemClick(AdapterView<?> parent, View v,
int position, long id) {
processPaletteClick(position);
}
});
GridView tile = (GridView) findViewById(R.id.tileView);
tile.setAdapter(new ImageTile(this));
tile.setOnItemClickListener(new AdapterView.OnItemClickListener() {
public void onItemClick(AdapterView<?> parent, View v, int position, long id) {
processTileClick(position);
}
});
GridView repeat = (GridView) findViewById(R.id.repeatView);
repeat.setNumColumns(repeatMax);
repeat.setAdapter(new ImageRepeat(this));
RadioButton width = (RadioButton) findViewById(R.id.width4);
width.setChecked(true);
wide = 4;
RadioButton depth = (RadioButton) findViewById(R.id.depth3);
depth.setChecked(true);
deep = 3;
}
public void processPaletteClick(int position) {
paint = position;
}
public void processTileClick(int position) {
int y = position / tileRow;
int x = position % tileRow;
if (x >= wide) {return;}
int tilePosition = y * tileMax + x;
if (tile[tilePosition] == paint) {tile[tilePosition]=0;}
else {tile[tilePosition] = paint;}
redo();
}
public void doClear(View view) {
for (int i=0; i<(6 * 6); i++) {tile[i] = 0;}
redo();
}
public void clickWide1(View view) {wide = 1; redo();}
public void clickWide2(View view) {wide = 2; redo();}
public void clickWide3(View view) {wide = 3; redo();}
public void clickWide4(View view) {wide = 4; redo();}
public void clickWide5(View view) {wide = 5; redo();}
public void clickWide6(View view) {wide = 6; redo();}
public void clickDeep1(View view) {deep = 1; redo();}
public void clickDeep2(View view) {deep = 2; redo();}
public void clickDeep3(View view) {deep = 3; redo();}
public void clickDeep4(View view) {deep = 4; redo();}
public void clickDeep5(View view) {deep = 5; redo();}
public void clickDeep6(View view) {deep = 6; redo();}
// redo screen
public void redo() {
GridView tile = (GridView) findViewById(R.id.tileView);
tile.setAdapter(new ImageTile(this));
GridView repeat = (GridView) findViewById(R.id.repeatView);
repeat.setAdapter(new ImageRepeat(this));
}
}
]]>
app/java/com.(the project name)/ImagePalette - code for palette gridview. You create this new file by right-clicking on the MainActvity and select New, then Java class
<![CDATA[
package com.edkins.tessellations;
import ...
public class ImagePalette extends BaseAdapter {
private AppCompatActivity mContext;
public ImagePalette(AppCompatActivity c) {mContext = c;}
public int getCount() {return MainActivity.palette.length;}
public Object getItem(int position) {return null;}
public long getItemId(int position) {return 0;}
// create new ImageView for palette
public View getView(int position, View convertView, ViewGroup parent) {
ImageView imageView;
if (convertView == null) {
imageView = new ImageView(mContext);
}
else {
imageView = (ImageView) convertView;
}
// initialise the view element (to one of the colours)
imageView.setImageResource(MainActivity.palette[position]);
return imageView;
}
}
]]>
app/java/com.(the project name)/ImageTile - code for tile gridview - a new file, see above
<![CDATA[
package com.edkins.tessellations;
import ...
public class ImageTile extends BaseAdapter {
private AppCompatActivity mContext;
public ImageTile(AppCompatActivity c) {mContext = c;}
public int getCount() {return MainActivity.tileRow * MainActivity.deep;}
public Object getItem(int position) {return null;}
public long getItemId(int position) {return 0;}
// create new ImageView for tessera
public View getView(int position, View convertView, ViewGroup parent) {
ImageView imageView;
if (convertView == null) {
imageView = new ImageView(mContext);
GridView tile = (GridView) mContext.findViewById(R.id.tileView);
int w = tile.getWidth() / MainActivity.tileRow;
imageView.setLayoutParams(new GridView.LayoutParams(w, w));
} else {
imageView = (ImageView) convertView;
}
// initialise the view element (to whatever is in array tile[])
int y = position / MainActivity.tileRow;
int x = position % MainActivity.tileRow;
if (x < MainActivity.wide) {
int sub = MainActivity.tile[y * MainActivity.tileMax + x];
imageView.setImageResource(MainActivity.palette[sub]);
}
else {imageView.setImageResource(R.drawable.colour0sm);}
return imageView;
}
}
]]>
app/java/com.(the project name)/ImageRepeat - code for repeat gridview - a new file, see above
<![CDATA[
package com.edkins.tessellations;
import ...
public class ImageRepeat extends BaseAdapter {
private AppCompatActivity mContext;
public ImageRepeat(AppCompatActivity c) {mContext = c;}
public int getCount() {return MainActivity.repeatMax * MainActivity.repeatMax;}
public Object getItem(int position) {return null;}
public long getItemId(int position) {return 0;}
// create new ImageView for palette
public View getView(int position, View convertView, ViewGroup parent) {
ImageView imageView;
if (convertView == null) {
imageView = new ImageView(mContext);
GridView tile = (GridView) mContext.findViewById(R.id.tileView);
int w = tile.getWidth() / MainActivity.repeatMax;
imageView.setLayoutParams(new GridView.LayoutParams(w, w));
}
else {
imageView = (ImageView) convertView;
}
// initialise the view element (to whatever is in array tile[])
int y = position / MainActivity.repeatMax; y = y % MainActivity.deep;
int x = position % MainActivity.repeatMax; x = x % MainActivity.wide;
int tilePosition = y * MainActivity.tileMax + x;
int sub = MainActivity.tile[tilePosition];
imageView.setImageResource(MainActivity.palettesm[sub]);
return imageView;
}
}
]]>
Index to my other websites
© Jo Edkins 2016
