This page gives Imperial units of area. Lengths (such as inches, feet, yards and miles) are on the length page and cubic lengths are on the volume. There is a quick convertor below which gives an answer rounded to 2 decimal places. The metric equivalents on this page are also all to 2 decimal places.| Well-known units - square inches, feet and yards |
| Land measurement - (square) rod, pole & perch, rood, acre, hide |
| Fat quarters of fabric |
| Examination question |
| Silly units of area such as 'the size of Wales'. |
| Metric | Table | ||
|---|---|---|---|
| square inch | 6.45 sq cm | 12 x 12 inches = 1 square foot 144 square inches = 1 square foot | see inch |
| square foot | 929.03 sq cm | 3 x 3 feet = 1 square yard 9 square feet = 1 square yard | see foot |
| square yard | 8361.27 sq cm | 22 x 22 yards = 1 square chain 484 square yards = 1 square chain | see yard |
| square chain | 404.69 sq m | 10 x 10 chains = 1 square furlong 100 square chains = 1 square furlong | see chain |
| square furlong | 40468.56 sq m | 8 x 8 furlong = 1 square mile 64 square furlong = 1 square mile | see furlong |
| square mile | 2589988.11 sq m | see mile |
| Metric | Table | Information | |
|---|---|---|---|
| (square) rod, pole or perch | 25.29 sq m | 1 pole x 1 pole = 1 (square) pole 30.25 square yards = 1 (square) pole 40 (square) poles = 1 rood |
Rod, pole and perch are rather complicated. First, they are different names for the same unit of length, which is five and a half yards (see length page). To shorten the explanations, I use one unit rather than all three. Next, they could also be used as a unit of area. So a 10 perch allotment would be 5.5 yards wide by 55 yards long, or 10 square perch. To make my explanations clear, I say '(square) rod' to mean rod as a unit of area. |
| rood | 1011.71 sq m | 1210 square yards = 1 rood 40 (square) poles = 1 rood 1 furlong x 1 pole = 1 rood 4 roods = 1 acre |
Old records of land mention areas measured in '... A, ...R, ...P'. This will be acres, roods and (square) poles or perch. Old American records refer to a 'goad', which may be the same as a rood, although a goad may be other sizes as well. |
| acre | 0.4 hectares | 4840 square yards = 1 acre 1 furlong x 1 chain = 1 acre 10 square chains = 1 acre 4 roods = 1 acre 640 acres = 1 square mile |
An acre is a conventional measure of area. It was defined in the time of Edward I (1272-1307) and was supposed to be the area that a yoke of oxen could plough in a day. Acre is derived from the Latin for field, but the common field system of medieval times in Britain was ten acres. An acre is a furlong long and a chain wide. In fact, an archaic word for furlong was 'acre-length' and for chain 'acre-width'. See the length page for furlong and chain.
From "Countryfile" (BBC TV) "To plough an acre in a day, you'd walk 11 miles." If you want to visualise an acre, it's a square with sides of nearly 70 yards (or 64 metres). A hectare is about two and a half acres. The Scottish and Irish used to have different values for their acres. The Scottish acre was 6150.4 square yards and the Irish acre was 7840 square yards. Statutory Instrument 1995 No. 1804 allows the use of the acre for land registration. |
| hide | ?40 hectares | ?100 acres = 1 hide | A hide was enough land to support a house-hold, usually between 60-120 acres (24-48 hectares). A hide of good land was smaller than that of poor quality. Hides are used in the Doomsday Book. However, I have a reference of a hide as 100 acres.
A correspondent wrote: An oxgang was viking measure used in the Doomsday Book, and was the area of land that an ox could plough in one season. Since oxen were usually used in teams of eight, the area that eight ox could plough was called a bovate, or carucate. So an oxgang was about 15 acres, and a bovate was 100-120. Just to make it more awkward, parts if England not under Danelaw used the virgate, which was twice the size of an oxgang (because you used two ox instead of one), and a carucate was then known as a Hide. |

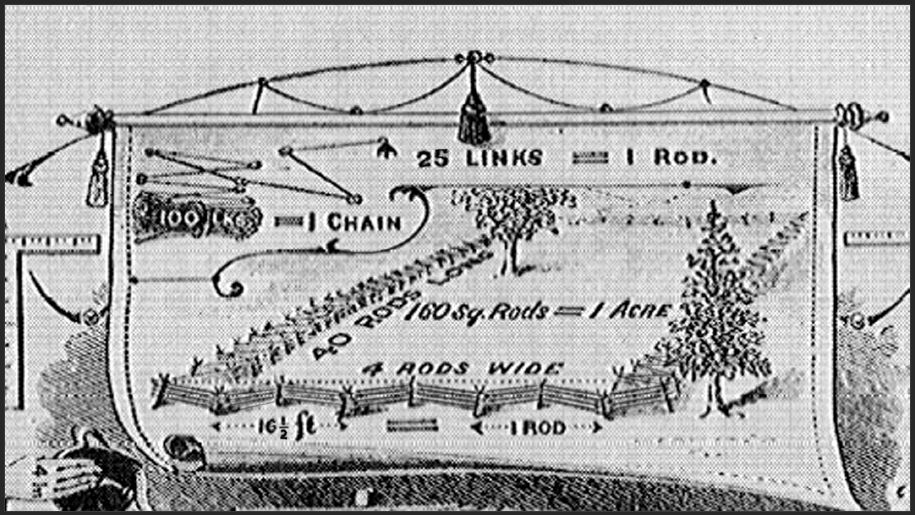

The following chart explains the relationship between chains, links, rods, and acres. It shows a worm rail fence. This is a zigzag fence consisting of interlocking rails supported by crossed poles, also called also snake fence, Virginia fence.
If anyone knows the original of this chart, please contact me.
A fat quarter of fabric is a measure of area. It is roughly quarter of a square yard, but a bit more. You take a piece of cloth, usually made in bolts of 44 inches wide. Cut a half yard piece off this, so now you have a piece half a yard (18 inches) by 44 inches. Cut the long side in two, so now you have two pieces 18 inches by 22 inches. Each is a fat quarter. (A "proper" quarter of a square yard in roughly the same shape would be 18 inches by 18 inches). Not all bolts of cloth are 44 inches wide. If the bolt was 42 inches wide, then the fat quarter would be 18 inches by 21 inches.
This is useful for crafts that need smaller amounts of fabric, like patchwork. It is possible to buy a strip of cloth the width of the bolt and a quarter of a yard long, but that would be a thin strip. The fat quarter would cost the same (unless the shop has a mark-up!) and is a squarish shape. So shops, knowing this shape is popular, may provide these useful squares in different fabrics.
Now of course, these may be measured in metres rather than yards. But this was the original principle.
There also seems to be a fat eighth as well. This would be 18 inches by 11 inches (for an original fabric width of 42 inches).
Here is an old examination question for candidates for admittance to American High School:
Multiply 17 A, 3 R, 28 rds, 19 yds, 8 ft, 97 in, by 9
I think that A are acres, R are roods, rds are (square) rods, yds are (square) yards, ft are (square) feet and in are (square) inches. The square units are implied, otherwise the question doesn't make sense!
So how would we do this problem? First list all the units with the smallest first (because a smaller unit will cascade into a bigger unit). Multiple each unit separately - the answer is under Multiple. But this needs to be reduced. If you have an answer of over 144 square inches, then you need to 'take out' some square feet until you get under 144 square inches, and add those square feet into the next line. I've listed the relevant table in brackets at the end of the line to remind me.
| Sum | Multiple | Reduce units | Table | |
|---|---|---|---|---|
| 97 square inches x 9 = | 873 sq in | 873 sq in / 144 = 6 sq ft 9 sq in | 9 sq in | (144 sq in = 1 sq ft) |
| 8 square feet x 9 = | 72 sq ft | (72 + 6) sq ft / 9 = 8 sq yd 6 sq ft | 6 sq ft | (9 sq ft = 1 sq yd) |
| 19 square yards x 9 = | 171 sq yd | (171 + 8) sq yd / 30.25 = 5 sq rod 27.75 sq yd | 27.75 sq yd | (30.25 sq yd = 1 sq rod) |
| 28 square rods x 9 = | 252 sq rod | (252 + 5) sq rod / 40 = 6 rood sq 17 rod | 17 rod | (40 sq rod = 1 rood) |
| 3 roods x 9 = | 27 roods | (27 + 6) rood / 4 = 8 acres 1 rood | 1 rood | (4 rood = 1 acre) |
| 17 acres x 9 = | 153 acres | (153 + 8) acres = 161 acres | 161 acres |
161 A, 1 R, 17 rds, 28 yds, 3 ft, 117 in (See calculator to check this.)
Phew! Children were expected to do such sums without calculators, or having the conversion tables in front of them, although we were told to "show our working" so a slight slip would not waste all our work and might still gain us a little credit. Some people think that education used to be better for such mental arithmetic. I doubt it. We do now have calculators, so why not use them, and I've seen modern children confidently handle decimals, percentages, angles, symmetry, tessellations and nets for three dimensional shapes at half the age that I did (in fact we never got on to symmetry).
If on the other hand you want to try your own hand at such problems, here is another question, this time using weight.
Divide 45 T, 17 ewt, 1 qr, 24 lbs, 12 oz, 8 dr, by 8
Here we have tons, a misprint for hundredweight (cwt), quarters (usually abbreviated as qtr in Britain), pounds, ounces and drams. I leave the sum as an exercise for the reader!
A lovely letter in New Scientist said "The proper units for large areas, such as those of giant icebergs and hurricanes, are the Wales (metric) and the Delaware (imperial). The conversion rate is approximately 3.215 Delawares to the Wales... Measurements of height is, of course, in Eiffeltowers and Empirestatebuildings (1.368 Eiffeltowers to the Empirestatebuilding)." Here is a good website which calculates areas in this unit! I think that the Wales has replaced the Isleofwight, which used to be the standard unit. I have also spotted the Luxembourg as a measure of icebergs as well. This is, of course, rather a large area. A football pitch is often used for small areas, and Cambridge has been used for medium areas. As a very rough approximation (and that is all these units are!)
5000 Football Pitches = 1 Cambridge
500 Cambridges = 1 Wales
A "Quite Interesting" tweet says "Due to Wales's frequent use as an indicator of size, the term "Nanowales" was introduced in 2007 as a unit of measurement. It's equal to 1/1,000,000,000th the area of Wales, or about 24.9 square yards.
Here is a splendid website called Mapfight. Select wo countries (or US States) and see which is bigger by area, and by how much. Which is the closest US state to the UK?
